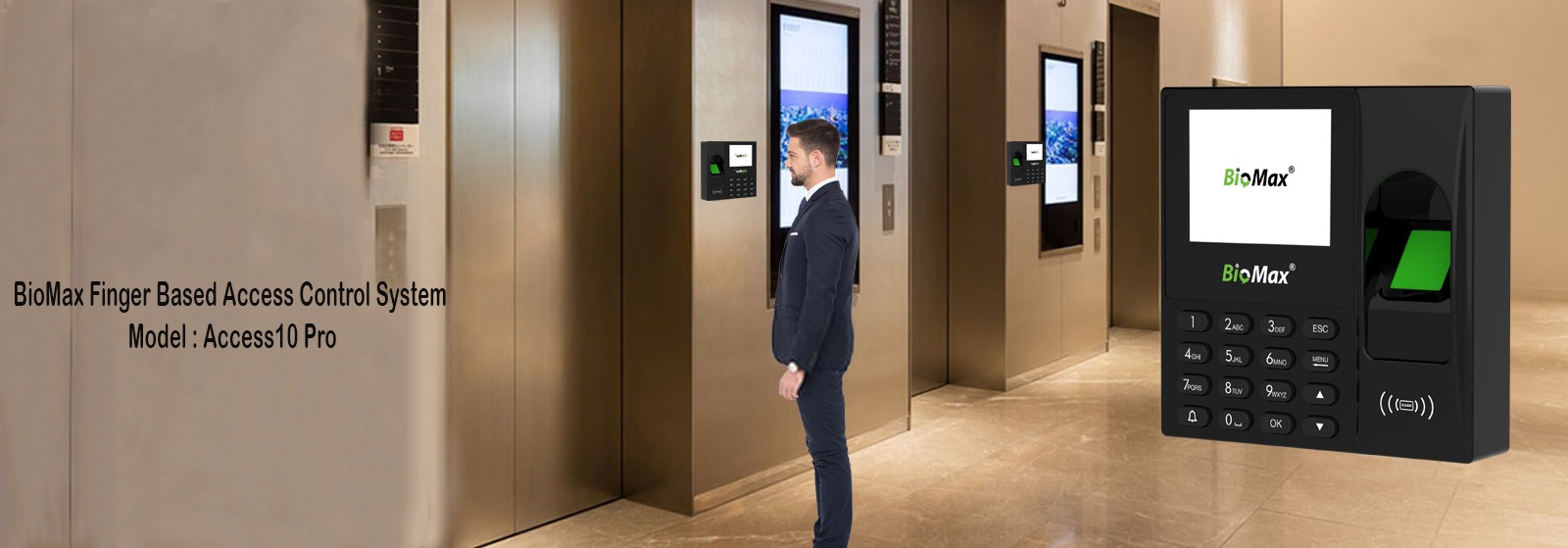

Biomax biometric access control machine Model N-Access10 Pro

BioMax N-Access10 Pro

BioMax N-Access 10 Pro is a compact access control device offering multiple verification methods (fingerprint, RFID card, Password) and dual verification option (fingerprint+RFID card or fingerprint + password). It supports 3000 fingerprints and 1000 RFID cards, providing sufficient capacity for organizations. The device features a secure operating system and two administrative passwords for settings modification.

Biomax Access10 pro has a USB port to download attendance data.

It can be connected to various door locks and also includes a push button for emergency access and an internal bell.

Key Features:

  • Multiple Verification Methods: Fingerprint, RFID card, and password options for user authentication.
  • Dual Verification: Supports combinations like fingerprint + RFID card or fingerprint + password.
  • High Capacity: Stores up to 3000 fingerprints and 1000 RFID cards.
  • Secure Operation: Built with its own operating method to prevent unauthorized modifications, with two admin passwords.
  • External Lock Compatibility: Can be connected with Electro Magnetic Lock, Bolt or Strike lock.
  • Emergency Features: Includes a push button for inner-door access and an internal bell function.

Fingerprint Access Control System

Storage Capacity

  • Finger Capacity : 3000

  • Card Capacity : 1000
  • Log Capacity : 1,00,000

  • Password Capacity : 1000

  • Max. User : 1000

Communication

  • USB

Audio/Visual

  • Display : 2.4″ TFT LCD color screen 320×240 pixel

  • Voice instruction : 16-bit Hi-Fi voice & sound indication

  • Language : English

Biomax Finger based access control device Model : Access10 pro

Biometric

  • FAR : 0.0001%

  • FRR : 0.01%

  • Sensor type : 500 DPI

  • Identification Mode : Fingerprint, Card, PIN

Access Control

  • Support : Remote, Push Button, No Touch

  • Relay : Yes

  • Mobile App to open lock (Optional)

Power & Environment

  • Operating Temperature : 0°c ~ 45°c
  • Power : 12VDC/2A

  • Dimension (L*H*W) : 100.24 x 105.2 x 29.4 mm
